THESE MODELS ARE VERY POPULAR - CONTACT US IF YOUR DESIRED SIZE OR COLOUR IS NOT IN STOCK
A BIKE FOR THE WAY RIDERS RIDE
Caledonia doesn’t fit in a box nicely, and we like it that way. It was conceived on our Thursday night rides—routes that often play fast and loose with ‘road ride.’ Modern road riders are looking for bikes to handle long-distance, high pace, no limits, and offer maximum fun—the Caledonia delivers performance, comfort, and speed. Oh, and you can fit a 34mm tire in there. Or 31mm with fenders.
Our bolt-on front derailleur mount is made from high-strength aluminum alloy and attaches to the frame with two countersunk screws. This allows for easy replacement in the event of damage but also enables you to adapt to new standards as they become available or remove the front derailleur mount completely if you choose a 1x system.
Integrated mounts enable the use of fenders, lights, and computers without compromising the aerodynamics or structure of your bike. The built-in mount systems provide a simple and clean-looking solution.
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Headset | FSA IS2 1-1/8, 36° x 45° / 1-1/2, 36° x 45° |
| Seatpost | Cervélo SP19 Carbon 27.2 |
| Seatpost Sizing | Size 48 - 0mm, Size 51 - 0mm, Size 54 - 0mm, Size 56 - 0mm, Size 58 - 15mm, Size 61 - 15mm |
| Left Shifter/Brake | SRAM Force AXS E1 |
| Right Shifter/Brake | SRAM Force AXS E1 |
| Front Derailleur | SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force AXS E1 |
| Brake Rotors | SRAM Paceline Centerlock |
| Front Thru Axles | Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length |
| Rear Thru Axles | Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length |
| Bottom Bracket | SRAM DUB, BBright |
| Crankset | SRAM Force AXS E1, 48/35T, DUB |
| Crank Sizing | Size 48 - 165mm, Size 51 - 165mm, Size 54 - 170mm, Size 56 - 170mm, Size 58 - 172.5mm, Size 61 - 172.5mm |
| Handlebar | Cervélo AB07 Alloy, 31.8mm clamp |
| Handlebar Sizing | Size 48 - 38cm, Size 51 - 38cm, Size 54 - 40cm, Size 56 - 40cm, Size 58 - 42cm, Size 61 - 42cm |
| Stem | Cervélo ST36 Alloy |
| Stem Sizing | Size 48 - 80mm, Size 51 - 90mm, Size 54 - 100mm, Size 56 - 100mm, Size 58 - 110mm, Size 61 - 110mm |
| Saddle | Cervélo Saddle |
| Cassette | SRAM Force E1, 10-36T, 12-Speed |
| Chain | SRAM Force E1 |
| Front Wheel | Reserve 40, Reserve hub, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 44, Reserve hub, 4 Pawl, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
| Tire | Vittoria Corsa N.EXT TLR G2.0 700x30c |
| Max Tire Width | 34mm |

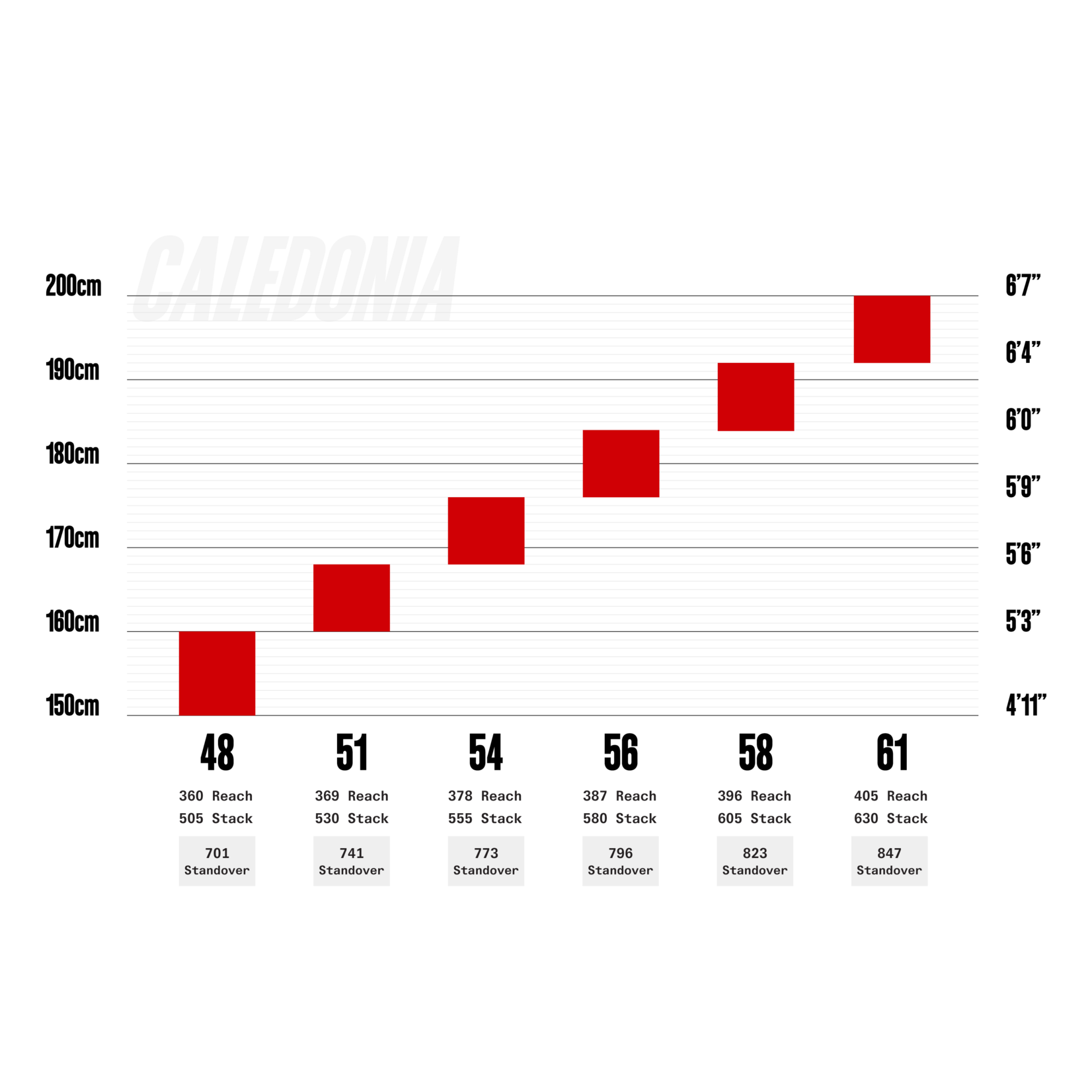

| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach | mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop | mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length | mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length | mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase | mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length | mm | 415 | 415 | 415 | 415 | 415 | 415 |
How do I determine what bike size I need?
The age-old question, isn’t it? There are many factors that go into bicycle sizing and fit, particularly for high-performance bikes. Without being able to measure you and see you on a bike, precise fit information is difficult to supply. It’s also not unusual for someone to be able to ride two different sizes depending on their goals, flexibility, and fit tolerance. That said, we have some fantastic retailers, and we’d encourage you to go start a conversation with them about what you want from your new bike. You can find the retailer closest to you on our Dealer Locator.
