Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking.
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
| Frame | |
|---|---|
| Frame | Carbon C 29" 150mm Travel VPP™ |
| Weight | 34.06lbs / 15.45 kg |
| Wheel Size | 29" |
| Suspension | |
| Fork | FOX 36 Float Performance, Grip, 160mm |
| Shock | FOX Float X Performance, 230x57.5 |
| Drivetrain | |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |

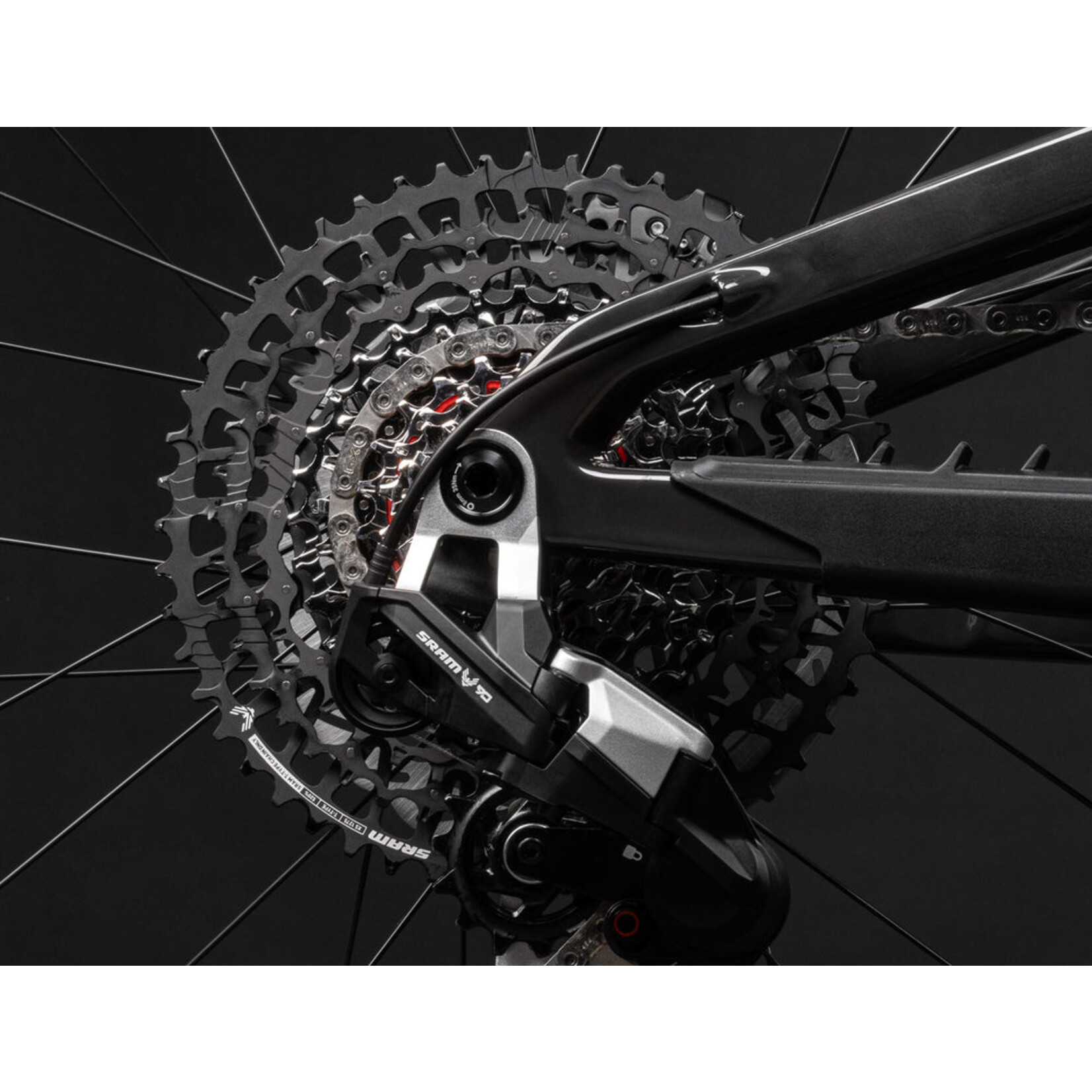

| Cassette | SRAM XS 1275 Eagle T-Type, 10-52t |
| Chain | SRAM GX Eagle T-Type, Flattop, 12spd |
| Chainguide | N/A |
| Crankset | SRAM 90 Eagle DUB T-Type Crankset, 32t |
| Rear Derailleur | SRAM 90 Eagle T-Type, 12spd |
| Right Shifter | SRAM 90 Eagle T-Type, 12spd |
| Brakes | |
| Front Brakes | SRAM Maven Base |
| Front Rotor | SRAM HS2 200mm |
| Rear Rotor | SRAM HS2 180mm |
| Cockpit | |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Handlebars | OneUp Aluminum Bar |
| Headset | Cane Creek 50 IS Integrated Headset |
| Saddle | SDG Bel-Air V3 Lux-Alloy |
| Seatpost | OneUp Dropper Post, 31.6 |
| Stem | OneUp Enduro Stem, 42mm |
| Wheels | |
| Front Rim | Reserve 30|TR AL |
| Front Hub | DT Swiss 370, 15x110, 6-Bolt, 28h |
| Front Tire | Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO |
| Rear Rim | Reserve 30|TR AL |
| Rear Hub | DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h |
| Rear Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
| Specs | |
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | 180 PM |
| Shock Length | 230mm |
| Fork Offset | 44mm |
| Front Derailleur Mount | No compatibility |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Rotor Size | 223mm |
| Max Tire Clearance | 2.5" |
| Recommended Sag | 30% (17.25mm) |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 40x10 (standard bushing) |
| Shock Bushing Size Rear | 30x8 (roller bearing) |
| Shock Stroke | 57.5mm |

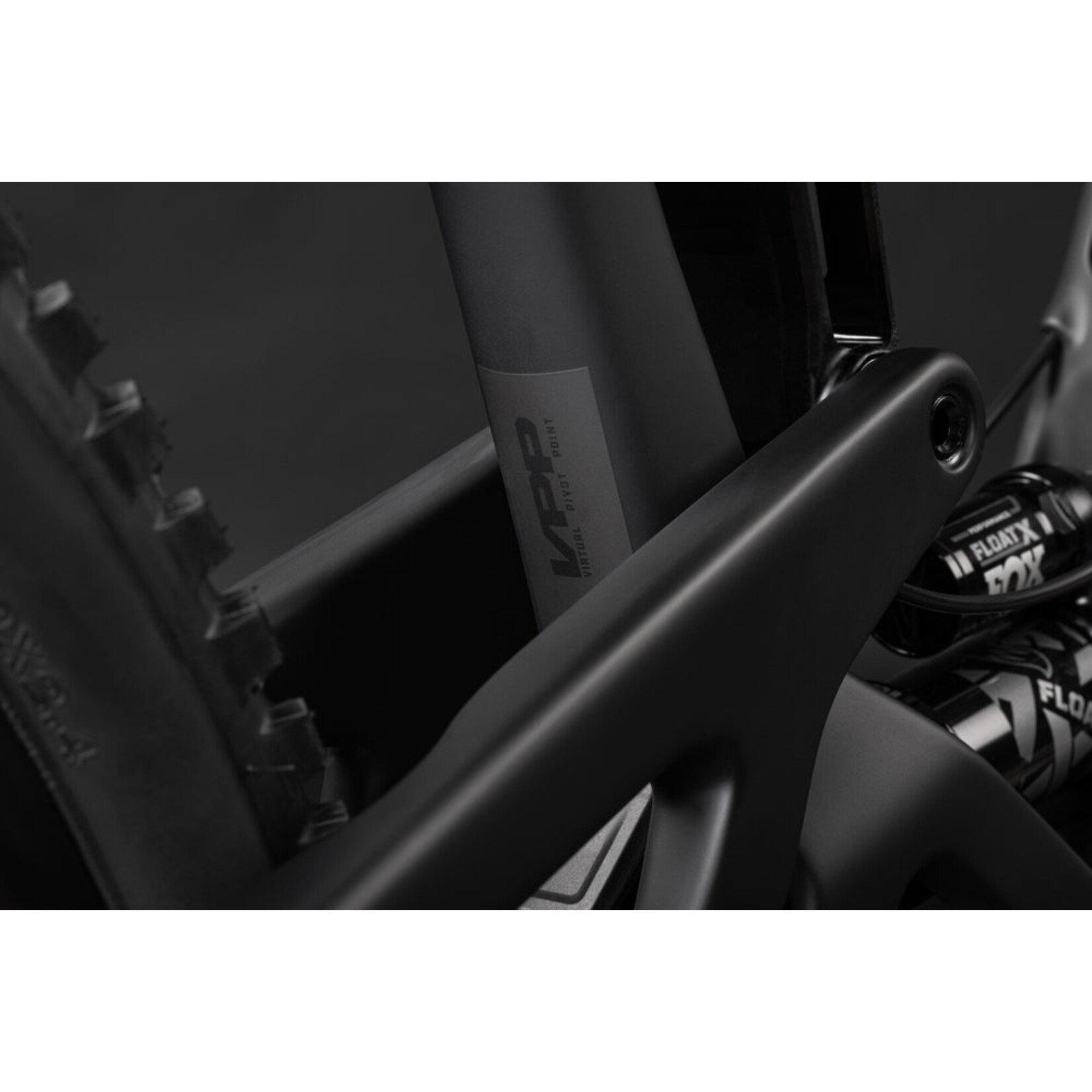

| Suspension System | VPP |
| Water Bottle Mounts | 1 |
