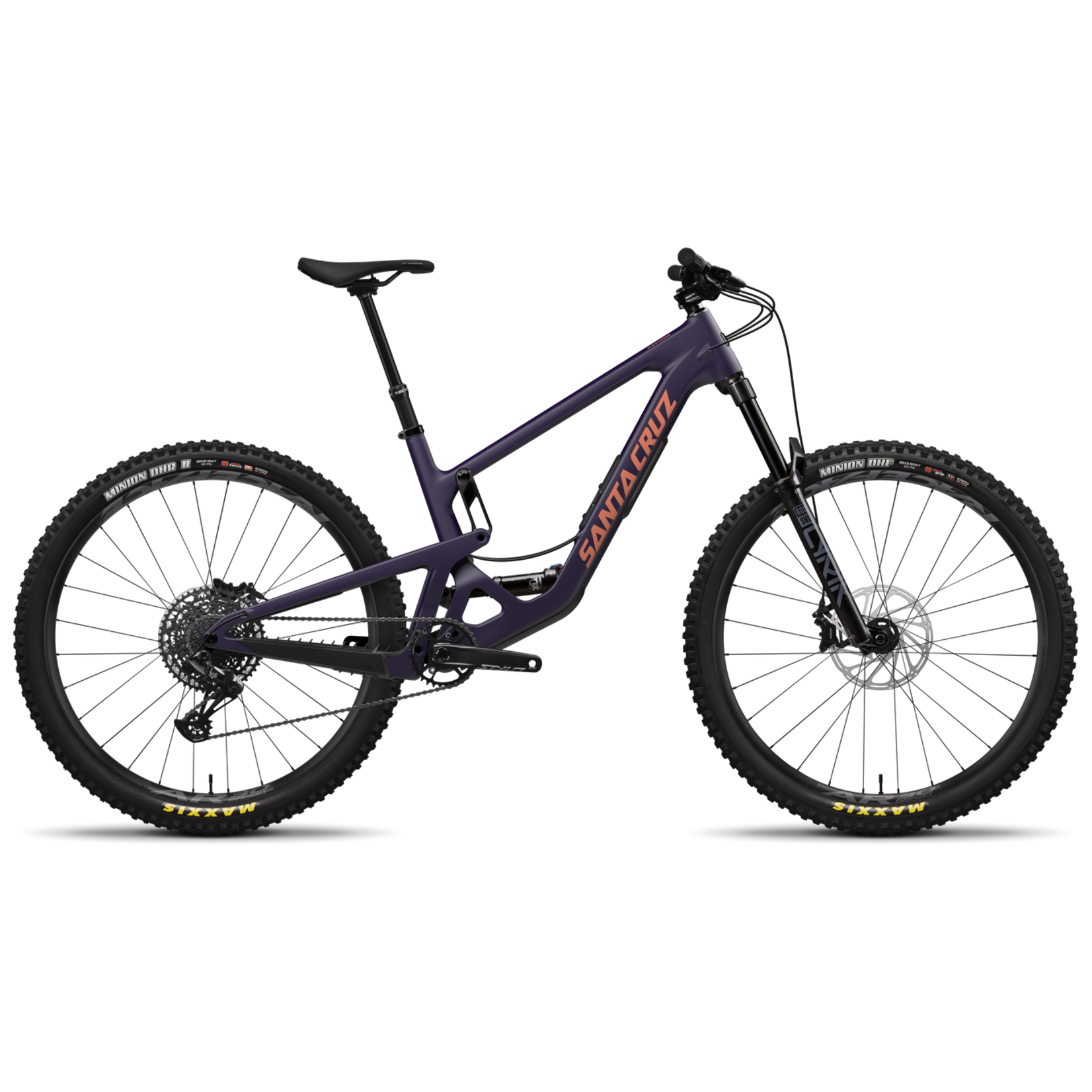

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking.
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
| Frame | |
|---|---|
| Material | Carbon C |
| Travel | 150mm |
| Weight | 34.44 lbs / 15.62 kg |
| Wheel Size | 29 |
| Suspension | |
| Fork | RockShox Lyrik Base, 160mm |
| Shock | FOX Float Rhythm, 230x57.5 |
| Drivetrain | |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Cassette | SRAM PG1230, 12spd, 11-50t |
| Chain | SRAM NX Eagle, 12spd |
| Crankset | SRAM Descendant Eagle 148 DUB 32t |
| Rear Derailleur | SRAM NX Eagle, 12spd |
| Right Shifter | SRAM NX Eagle, 12spd |
| Brakes | |
| Brakes | SRAM DB8 Stealth |
| Front Rotor | SRAM Centerline, 200mm |
| Rear Rotor | SRAM Centerline, 200mm |
| Cockpit | |
| Dropper Length | S - 125mm, M - 150mm, L - 170mm, XL - 200mm, XXL - 200mm |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |
| Handlebars | Burgtec Alloy Bar |
| Headset | FSA IS-2/47/42 ACB -or- Cane Creek 10 IS Integrated Headset |
| Saddle | Fizik Monte -or- SDG Bel-Air V3, Steel |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Stem | OneUp Stem, 42mm -or- Burgtec Enduro Stem, 42mm |
| Wheels | |
| Front Rim | Reserve 30|TR AL -or- Raceface AR30 |
| Front Hub | SRAM MTH 716, 15x110, 6-Bolt, 32h |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
| Rear Rim | Reserve 30|TR AL -or- Raceface AR30 |
| Rear Hub | SRAM MTH 746, 12x148, HG, 6-Bolt, 32h |
| Rear Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
| Valves | Reserve Fillmore Valves |
| Specs | |
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | 180 PM |
| Shock Length | 230mm |
| Fork Offset | 44mm |
| Front Derailleur Mount | No compatibility |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Rotor Size | 223mm |
| Max Tire Clearance | 2.5" |
| Recommended Sag | 30% (17.25mm) |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 40x10 (standard bushing) |
| Shock Bushing Size Rear | 30x8 (roller bearing) |
| Shock Stroke | 57.5mm |
| Suspension System | VPP |
| Water Bottle Mounts | 1 |
