  • Stinner Refugio Steel Frameset

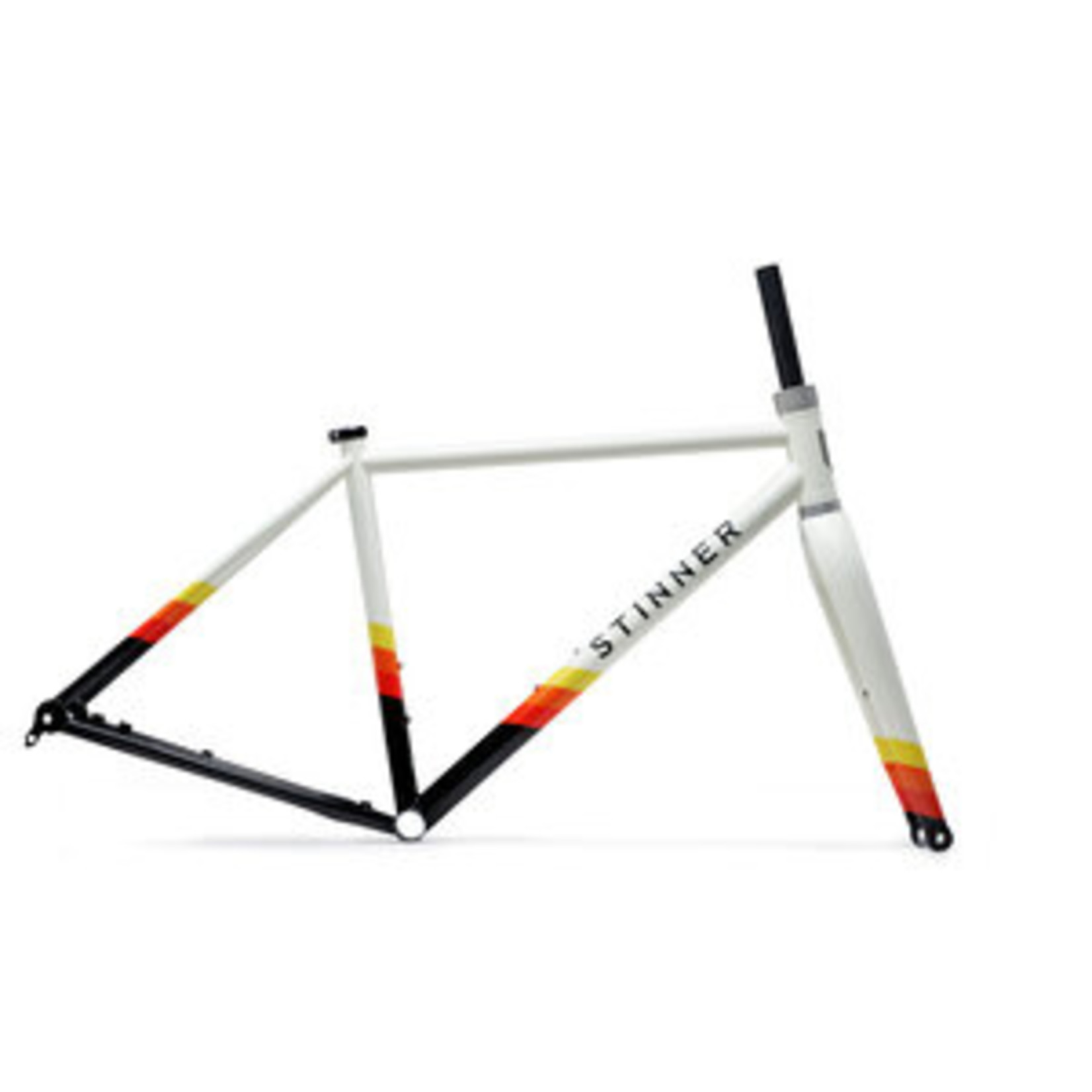

Stinner Refugio Steel Frameset

Excl. tax

Prices starting at $5,000. Before smooth asphalt roads swept up and between mountains, there were quiet gravel paths.

On backorder (Delivery timeframe: Contact us for availability: [email protected] - 514-505-3895)

Available in store


The Refugio is made to handle all roads–paved, unpaved, and everything in between–from the gravel road of the Carrizo Plain to the double track of the Sierra Nevada.

Choose your paths with confidence, let your frameset inspire your direction.



  • Fully constructed from custom-ordered steel or titanium tubing provided by high-quality manufacturers

  • Stinner Select flat-mount disc carbon gravel fork

  • Includes Front Derailleur Clamp, Rear Derailleur Hangar, Seat Clamp, and Chainstay Protector



  • Maximum tire clearance of 700c x 45mm

  • Maximum chainring clearance for 50/34 (2x) or 42T (1x)

  • Dropout spacing: 142x12mm TA Rear, 100x12mm TA Front

  • Flat-mount front and rear disc brakes

  • External shift and brake cable routing

  • Max rotor sizes: 160mm front, 160mm rear

  • Front derailleur clamp: 28.6mm (Steel), 31.8mm (Ti)

  • Seat post diameter: 27.2mm

  • English-threaded 68mm bottom bracket shell

  • Carbon 1.5" tapered fork, 300mm steerer

  • Fork crown race diameter: 33mm

  • 44mm internal headtube diameter

  • Headset: ZS44/28.6 Upper, EC44/33 Lower
