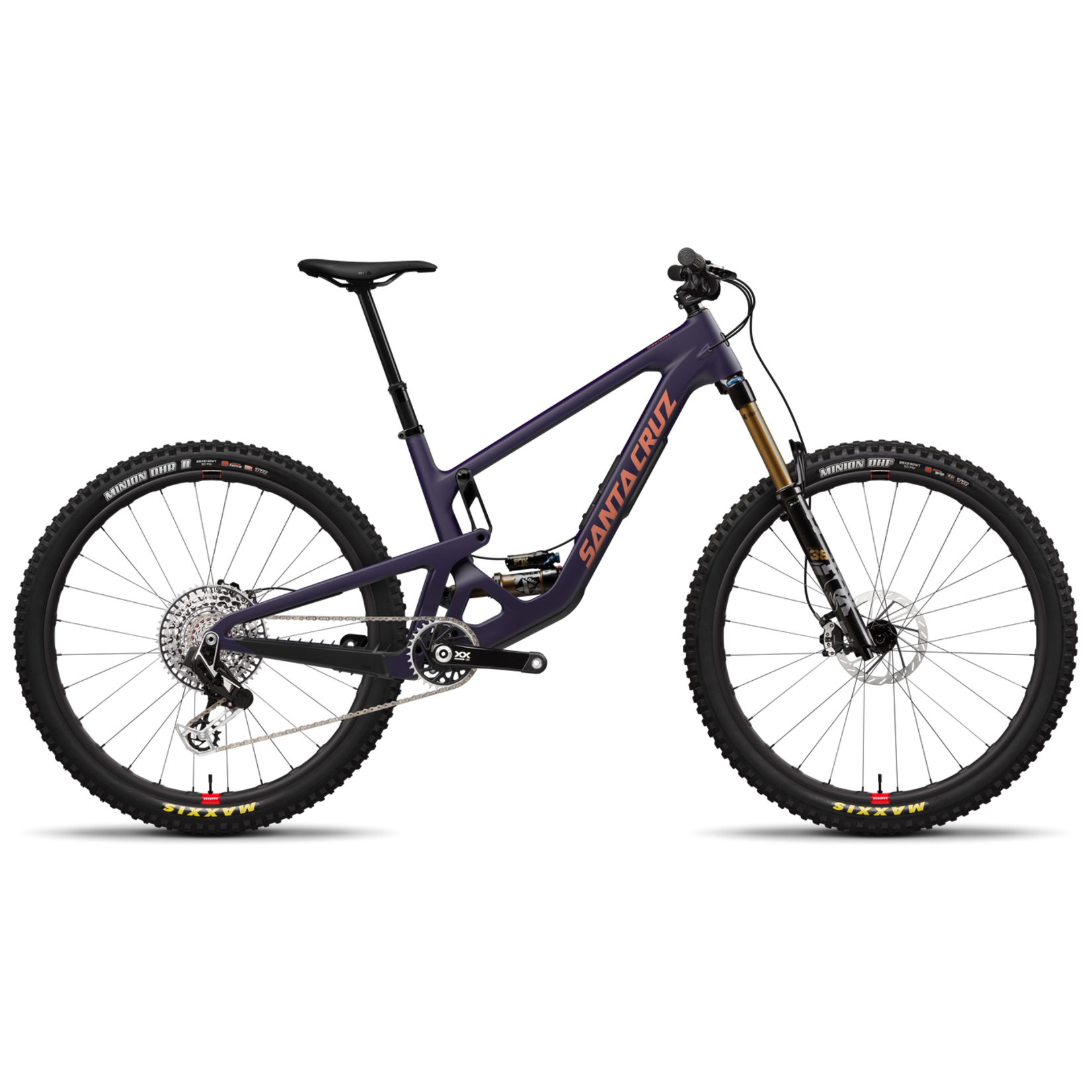

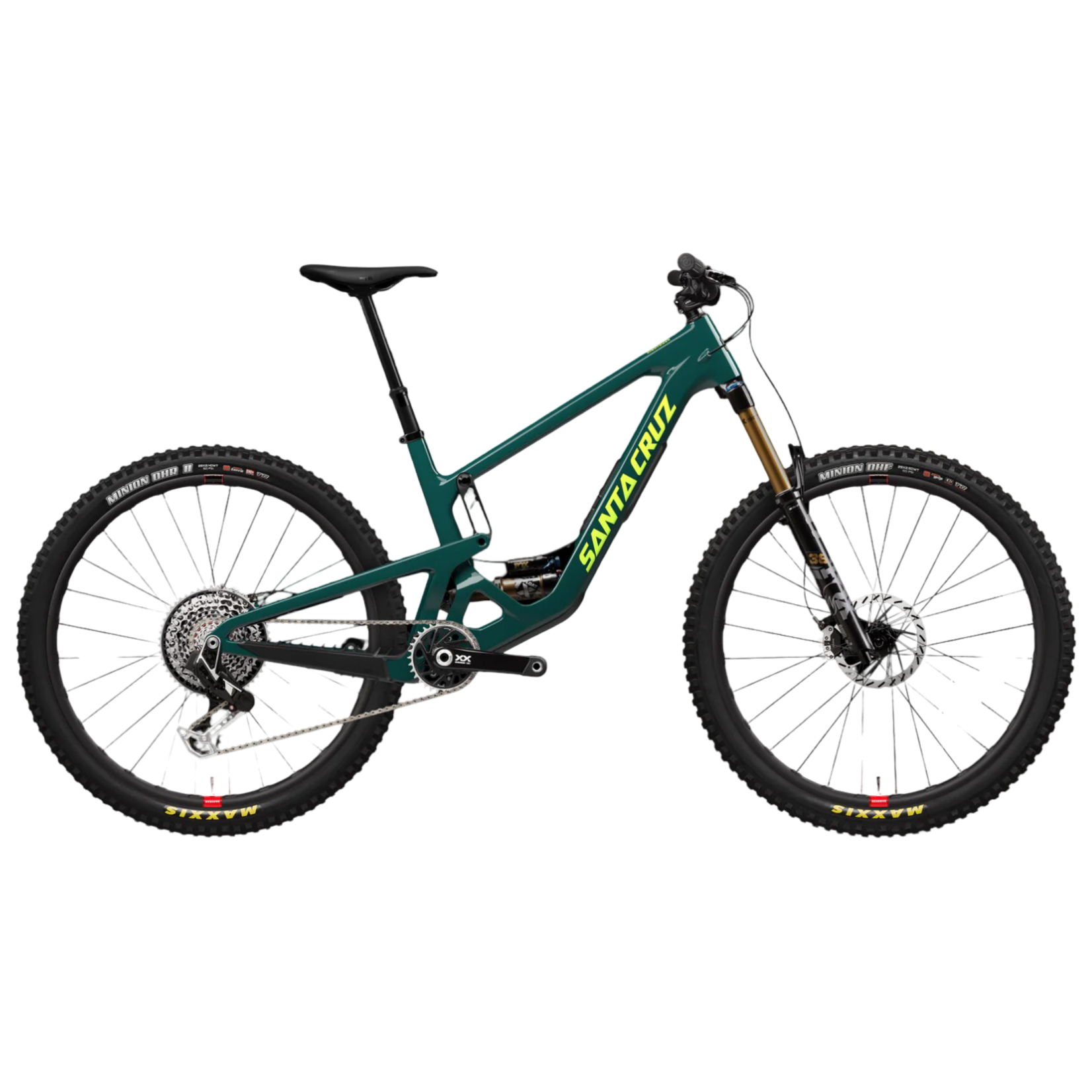

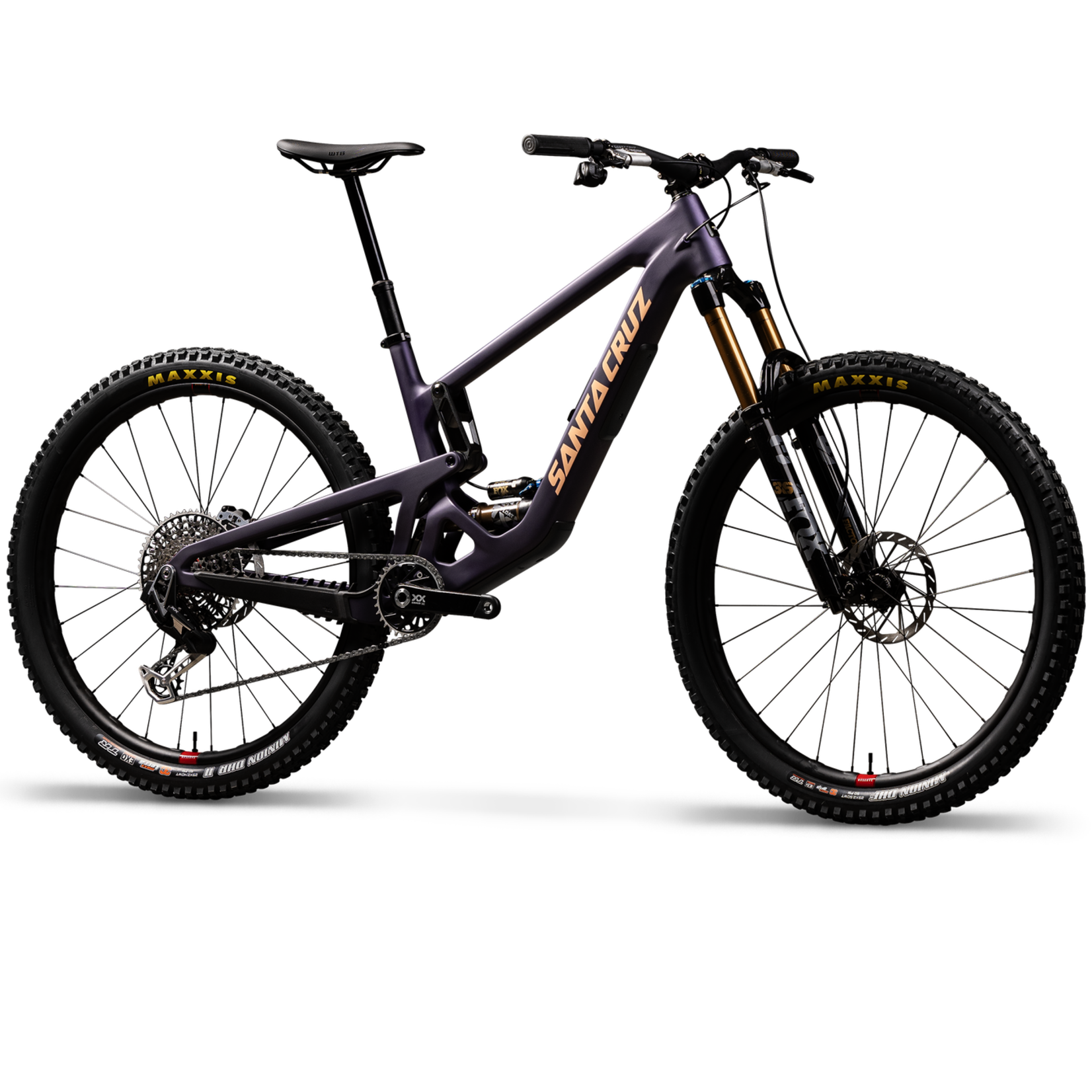

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking.

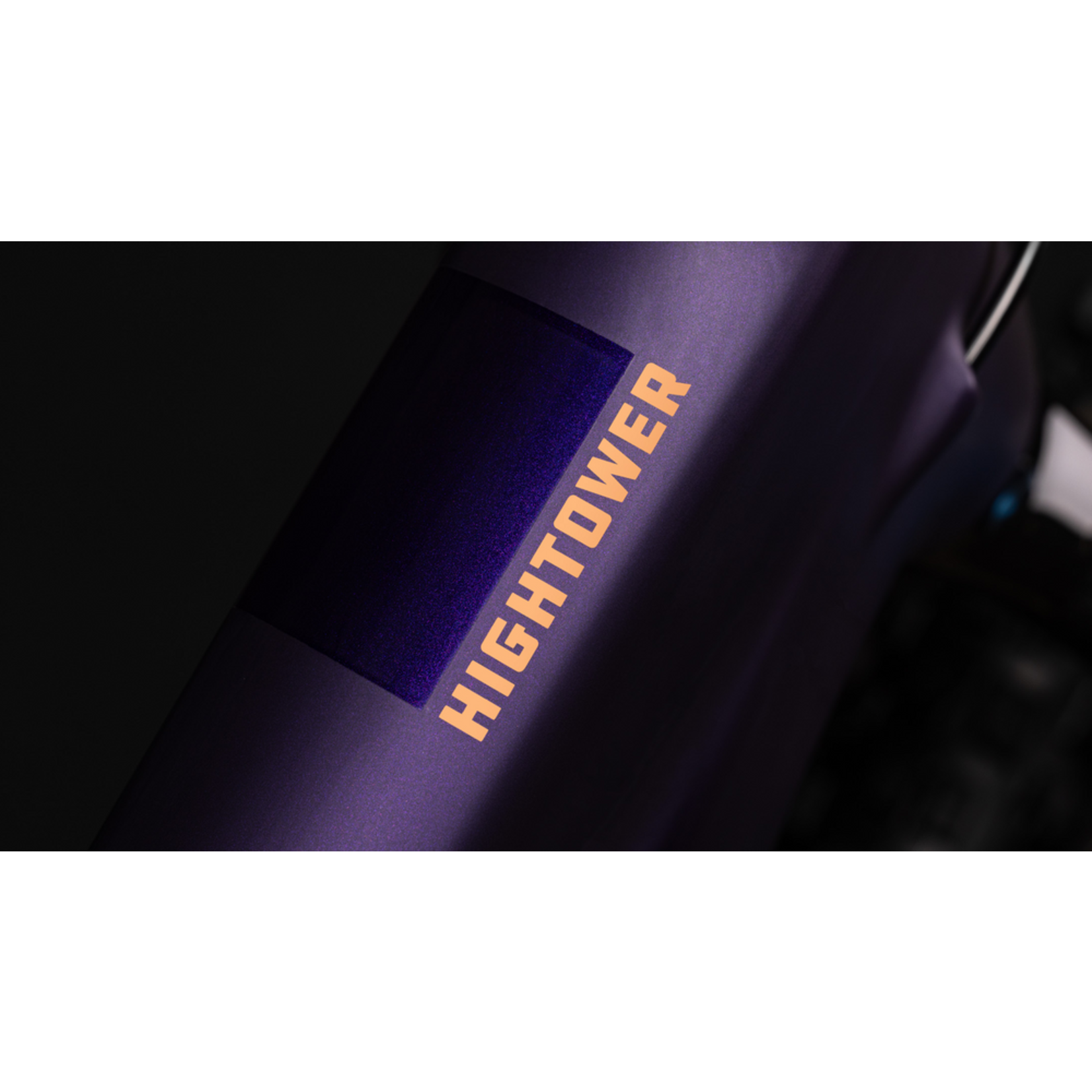

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
| Frame | |
|---|---|
| Material | Carbon CC |
| Travel | 150mm |
| Weight | 31.7 lbs / 14.38 kg |
| Wheel Size | 29 |
| Suspension | |
| Fork | Fox 36 Float Factory, Grip X2, 160mm |

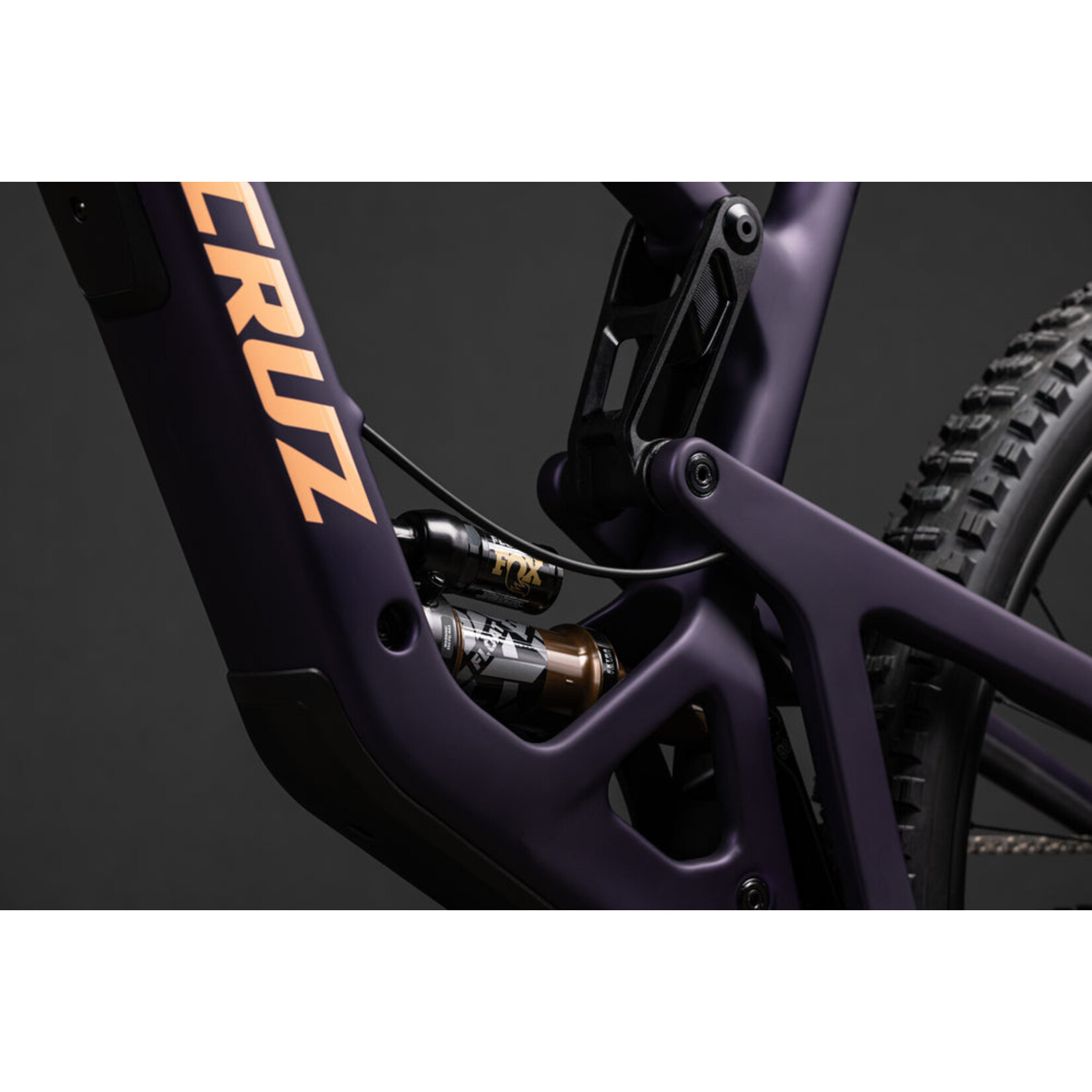

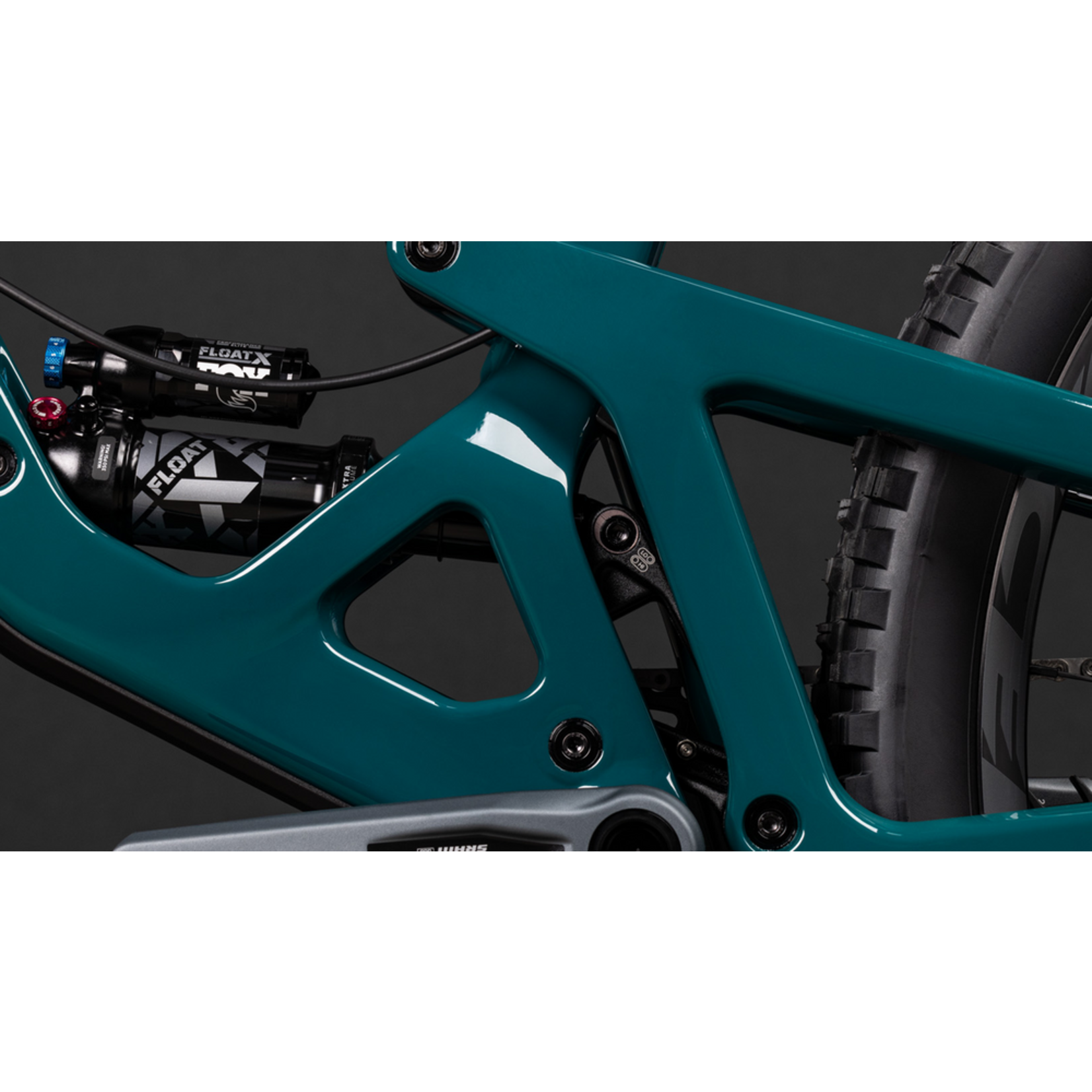

| Shock | FOX Float X Factory, 230x57.5 |
| Drivetrain | |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| Cassette | SRAM XX Eagle T-Type, 10-52t |
| Chain | SRAM XX SL Eagle T-Type, Flattop, 12spd |
| Crankset | SRAM XX Eagle DUB T-Type Crankset, 32t |
| Rear Derailleur | SRAM XX Eagle AXS T-Type, 12spd |
| Right Shifter | SRAM AXS Pod Controller Rocker Paddle |
| Brakes | |
| Brakes | SRAM Maven Ultimate Stealth |
| Front Rotor | SRAM HS2 180mm |
| Rear Rotor | SRAM HS2 180mm |
| Cockpit | |
| Dropper Length | S - 120mm, M - 150mm, L - 180mm, XL - 210mm, XXL - 210mm |
| Grips / Bar Tape | Santa Cruz Bicycles House Grips |

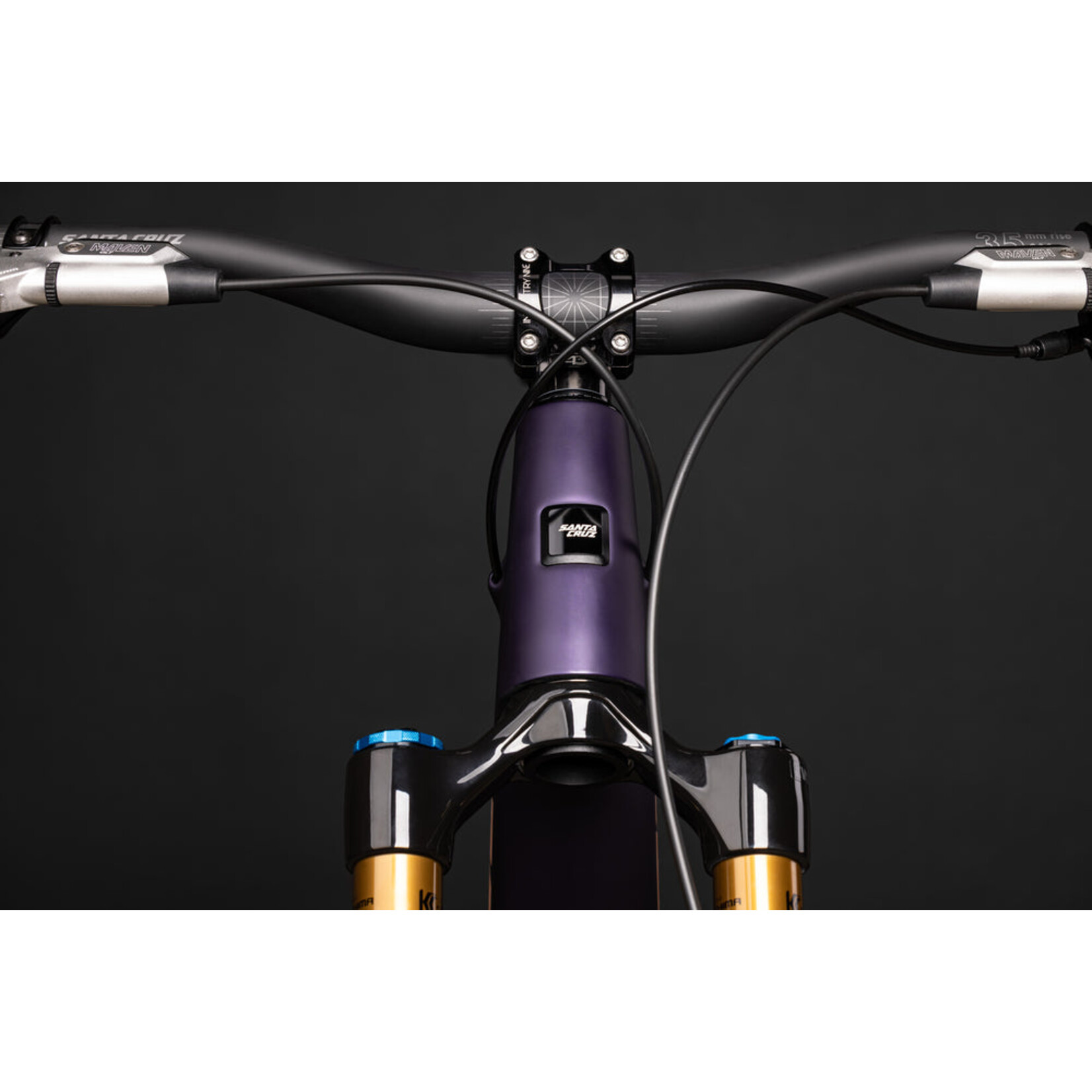

| Handlebars | Santa Cruz 35 Carbon Bar, 800mm |
| Headset | Chris King DropSet 3 Integrated Headset |
| Saddle | WTB Silverado Medium Fusion, Stainless |
| Seatpost | OneUp Dropper Post, 31.6 |
| Stem | Industry Nine A35, 40mm |
| Wheels | |

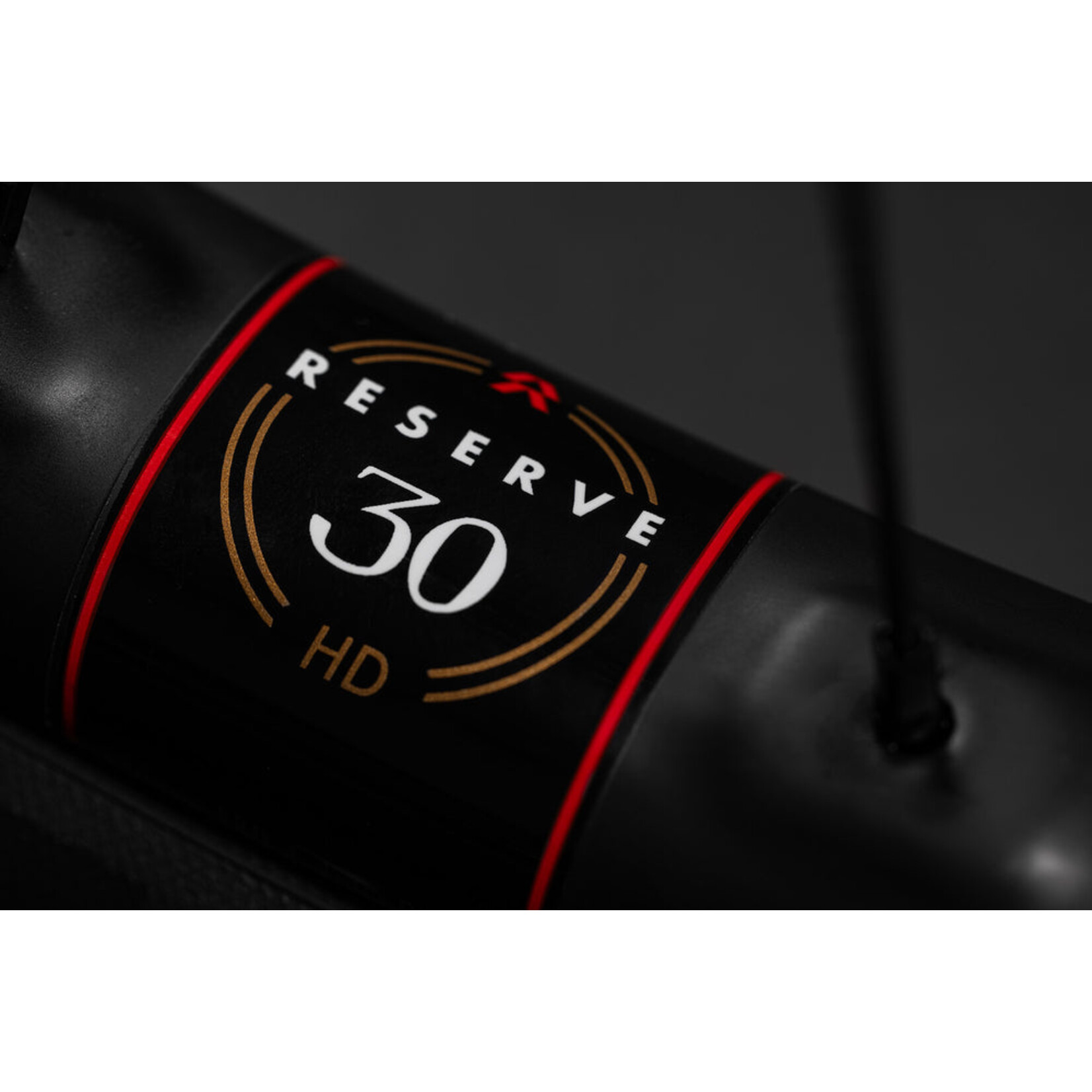

| Front Rim | Reserve 30|HD Carbon |
| Front Hub | Industry Nine Hydra, 15x110, 6-Bolt 28h |
| Front Tire | Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
| Rear Rim | Reserve 30|HD Carbon |
| Rear Hub | Industry Nine Hydra, 12x148, XD, 6-Bolt, 28h |
| Rear Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+ |
| Valves | Reserve Fillmore Valves |
| Specs | |
| Bottom Bracket Shell | 73mm Threaded |
| Rear Brake Mount | 180 PM |
| Shock Length | 230mm |
| Fork Offset | 44mm |
| Front Derailleur Mount | No compatibility |
| Headset | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Rotor Size | 223mm |
| Max Tire Clearance | 2.5" |
| Recommended Sag | 30% (17.25mm) |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Bushing Size Front | 40x10 (standard bushing) |
| Shock Bushing Size Rear | 30x8 (roller bearing) |
| Shock Stroke | 57.5mm |

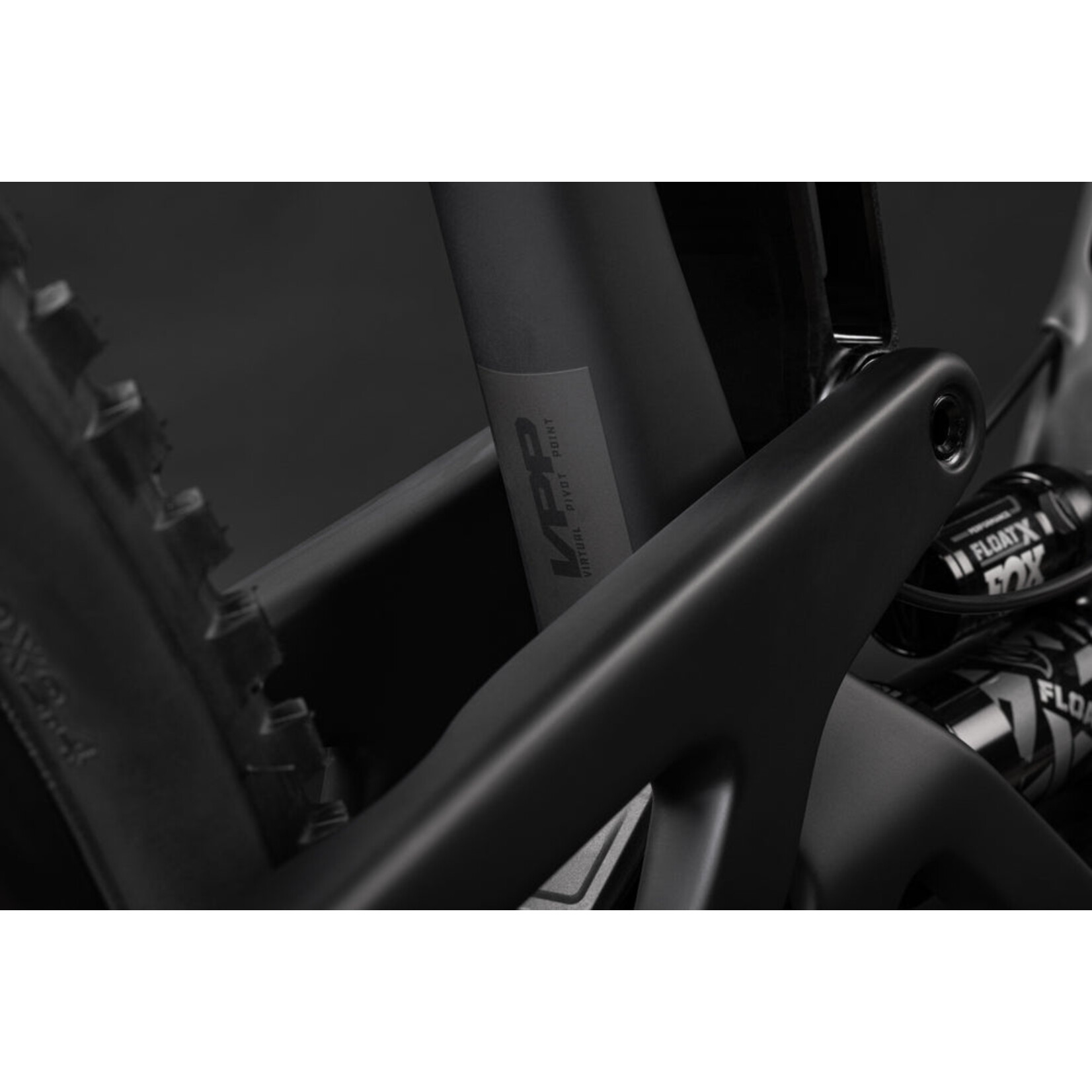

| Suspension System | VPP |
| Water Bottle Mounts | |
