GENIE Suspension, the Ultimate Air Spring
Experience more traction, boost control, and say goodbye to bottom-outs.
Advanced Geometry, Personalized Control
Best ride out of the box, with options to adjust for riders who like to tune.
Mixed Wheels, Flawless Ride
27.5” in back for maneuverability, 29” up front to roll over everything.
Super Efficient, Unmatched Range to Weight
Levo 4’s 3.1 motor sets the standard in efficiency, delivering maximum range-to-weight.
Configurable Battery System, Your Power to Choose
Levo 4’s modular battery system lets you go big for long rides or stay lighter for nimble performance.
Super Charger
Charge from 0-80% in under an hour.

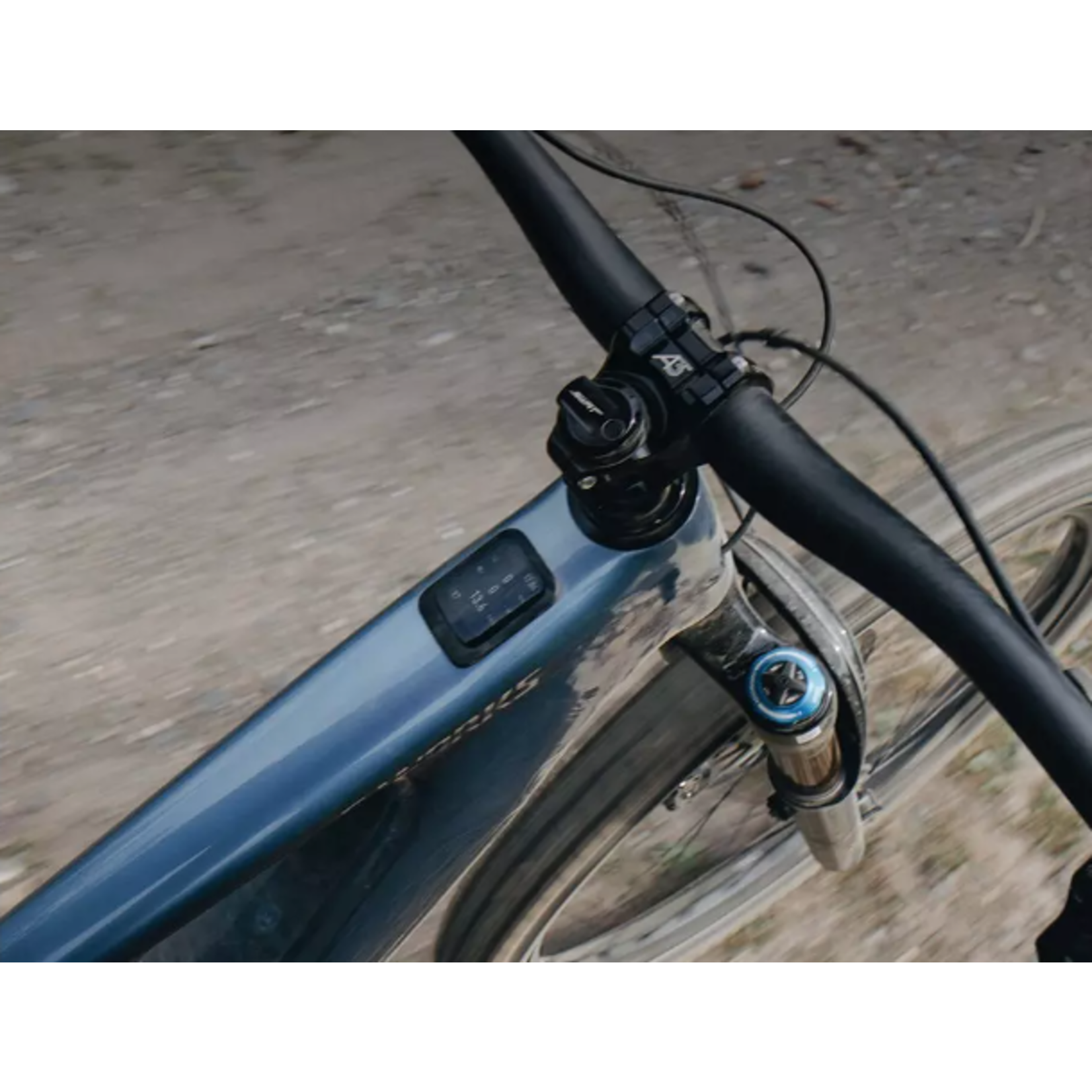

MasterMind
MasterMind delivers best-in-class data visualization and seamless integration.
Micro Tune and Dynamic Micro Tune
Power, Personalized: Fine-Tune Your Ride, Unleash When Needed.
Super App, Unleash Your Dream Ride
With advanced performance tracking, seamless partner app integration, and Turbo e-bike management, the Specialized App takes cycling to the next level.
Get On and Go
Auto Record: Ride recording that starts and stops when you do.
Peace of Mind, Locked In
Deter theft with Turbo System Lock.
Apple, Find My Turbo
Keep track of your bike like you do your phone with Apple Find My integration.
Customize Your Ride
Personalize your riding experience with Tune.
Sync Your Rides
Sync data with your favorite apps.
Technical Specifications
E-Bike
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery
840Wh battery
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
*Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
Brakes
Front Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM 70 trigger, 12-speed, single click
Rear Derailleur
SRAM Eagle 70 T-Type
Cassette
XS-1270, 12-speed, 10-52t
Chain
SRAM Eagle 70 T-Type Flattop Chain
Crankset
SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Grips
Specialized Trail Grips
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
221347
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
26.08 kg (57 lb, 7.8 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155mm | 155mm | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 780mm | 780mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 150mm | 170mm | 200mm | 200mm |
| Stack | 609mm | 618mm | 626mm | 638mm | 652mm | 667mm |
| Reach | 407mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 94mm | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 355mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 24.13mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
| Trail | 132mm | 132mm | 137mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 567mm | 577mm | 577mm | 577mm | 577mm | 577mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 744mm | 765mm | 789mm | 820mm | 851mm | 888mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1179mm | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
| Top-tube Length (horizontal) | 556mm | 578mm | 599mm | 627mm | 655mm | 689mm |
| Bike Standover Height | 753mm | 753mm | 754mm | 753mm | 758mm | 761mm |
| Seat Tube Length | 379mm | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 264mm | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
