GENIE Suspension, the Ultimate Air Spring
Experience more traction, boost control, and say goodbye to bottom-outs.
Advanced Geometry, Personalized Control
Best ride out of the box, with options to adjust for riders who like to tune.
Mixed Wheels, Flawless Ride
27.5” in back for maneuverability, 29” up front to roll over everything.
Super Efficient, Unmatched Range to Weight
Levo 4’s 3.1 motor sets the standard in efficiency, delivering maximum range-to-weight.
Configurable Battery System, Your Power to Choose
Levo 4’s modular battery system lets you go big for long rides or stay lighter for nimble performance.
Super Charger
Charge from 0-80% in under an hour.

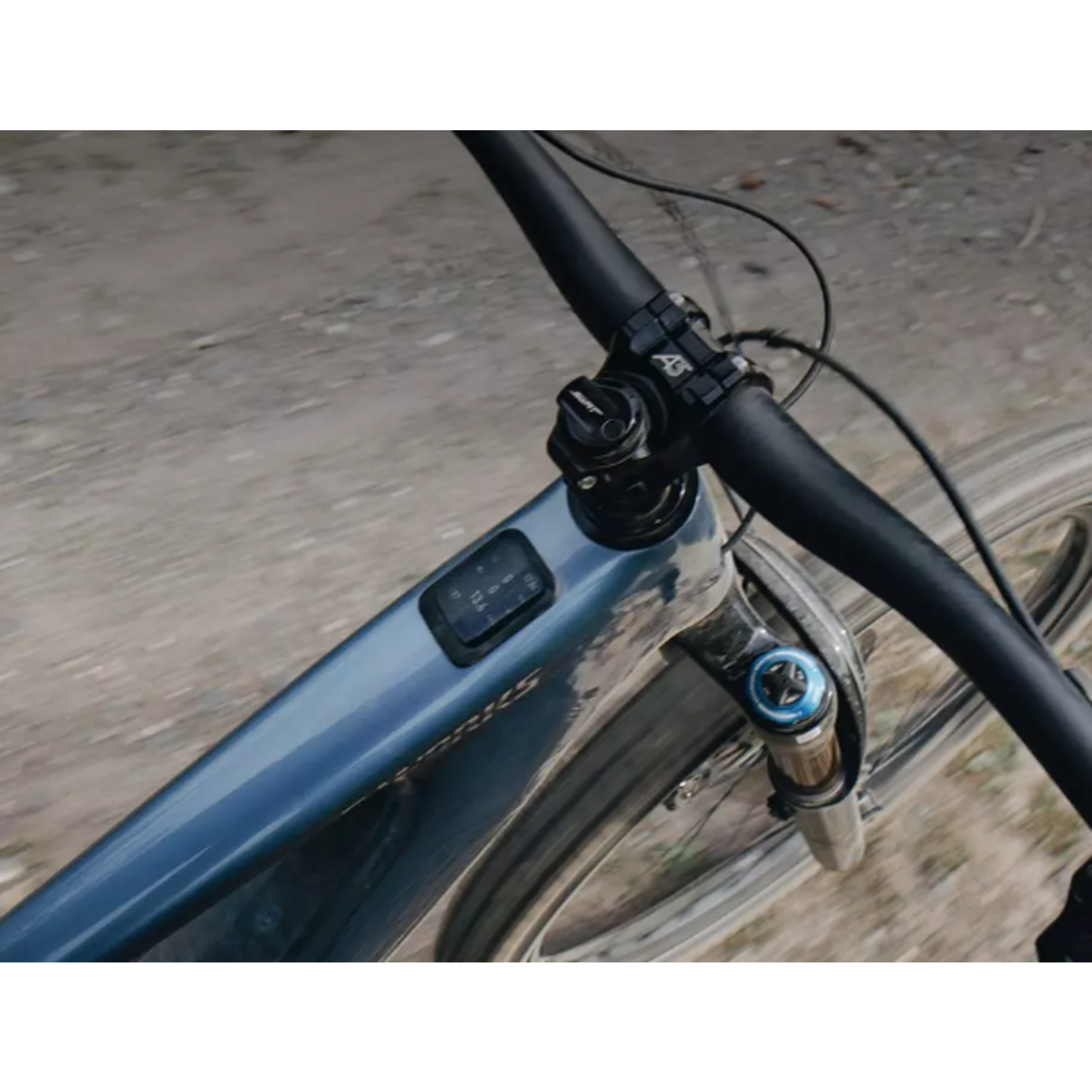

MasterMind
MasterMind delivers best-in-class data visualization and seamless integration.
Micro Tune and Dynamic Micro Tune
Power, Personalized: Fine-Tune Your Ride, Unleash When Needed.
Super App, Unleash Your Dream Ride
With advanced performance tracking, seamless partner app integration, and Turbo e-bike management, the Specialized App takes cycling to the next level.
Get On and Go
Auto Record: Ride recording that starts and stops when you do.
Peace of Mind, Locked In
Deter theft with Turbo System Lock.
Apple, Find My Turbo
Keep track of your bike like you do your phone with Apple Find My integration.
Customize Your Ride
Personalize your riding experience with Tune.
Sync Your Rides
Sync data with your favorite apps.
Technical Specifications
E-Bike
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840Wh battery
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Fork
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM X0 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Cassette
SRAM XO 1295, 12 speed, 10-52
Chain
SRAM X0
Crankset
SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
Chainrings
SRAM 34T T-Type chainring, 104 BCD, steel
Wheels & Tires
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel
Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Handlebars
RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Grips
Deity Lockjaw grips
Saddle
Bridge Mimic Expert, Hollow Ti rails
SeatPost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
218702
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
23.94kg (52 lb, 12.5 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Crank Length | 155mm | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 160mm | 185mm | 213mm | 213mm |
| Stack | 618mm | 626mm | 638mm | 652mm | 667mm |
| Reach | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 95mm | 103mm | 117mm | 132mm | 149mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
| Trail | 132mm | 132mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 577mm | 577mm | 577mm | 577mm | 577mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 765mm | 789mm | 820mm | 851mm | 888mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm | 435mm |
| Wheelbase | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
| Top-tube Length (horizontal) | 578mm | 599mm | 627mm | 655mm | 689mm |
| Bike Standover Height | 753mm | 754mm | 753mm | 758mm | 761mm |
| Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690mm | 735mm | 780mm | 825mm | 870mm |
| Max Seatpost Insertion | 274mm | 289mm | 313mm | 337mm | 357mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
